TECHNOLOGY

CALIBRATED FOR SUCCESS: OUR MACHINES.

  •      MILLING MACHINES

    In the milling area we rely on the newest Hurco 3-, 4-, and 5-axis centers. Their control harmonize with our programming system and offers performance data tailored precisely to our production requirements. A standardization that increases productivity - and lowers costs for our customers.

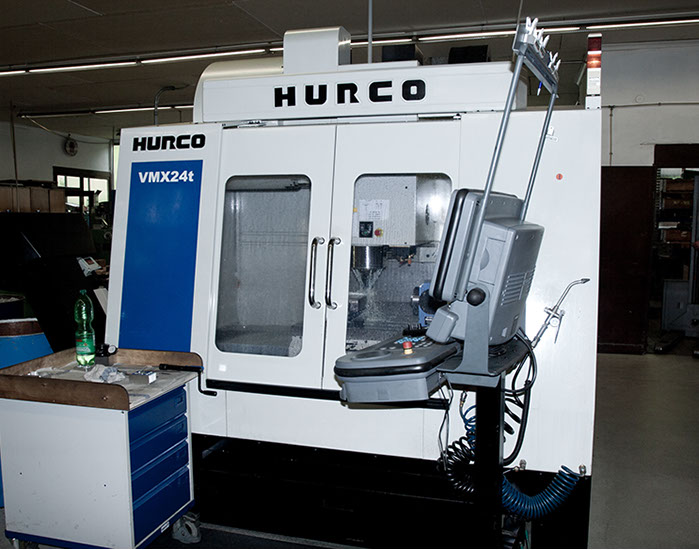

    Make 1: HURCO

    Type: VMX24t

    Year of construction: 2008

    Vertical 4-axis CNC machining center with Winmax control

    X = 610 mm Y = 510 mm Z = 610 mm

    Drive: 9 kW to 12,000 rpm up to 95 Nm torque

    Internally cooled spindle with air and emulsion

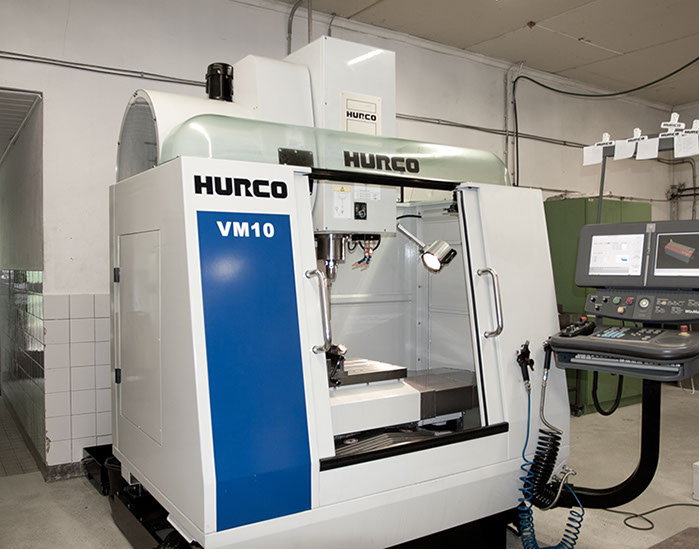

    Make 2: HURCO

    Type: VMX10

    Ýear of construction: 2011

    Vertical 3-axis CNC machining center with Winmax control

    X = 660 mm Y = 405 mm Z = 510 mm

    Drive: 11 kW to 10,000 rpm up to 74 Nm torque

    Internally cooled spindle

    Make 3: HURCO

    Type: VMX10

    Year of construction: 2012

    Vertical 3-axis CNC machining center with Winmax control

    X = 660 mm Y = 405 mm Z = 510 mm

    Drive: 11 kW to 10,000 rpm up to 74 Nm torque

    Internally cooled spindle

    Make 4: Fadal

    Type: VMC 3020

    Year of construction: 2002

    Vertical 3-axis machining center with Siemens Sinumerik 810D-Shopmill control system

    X = 762 mm Y = 508 mm Z = 609 mm

    Drive: 15 kW to 10,000 rpm to 375 Nm torque

    Internally cooled spindle

    Make 5: Cover FP2

    Type: FP2

    Year of construction: 1988

    Horizontal and vertical universal table with separate spindle drives

    X = 600 mm Y = 370 mm Z = 350 mm

    Drive: 6,5 KW each

    NC line control Heidenhain TNC 124



    Make 6: Knuth

    Type: Universal DB3

    Year of construction: 2013

    Horizontal and vertical universal table, as well as rotary table and separate spindle drives

    X = 800 mm Y = 370 mm Z = 460 mm

    Drive: 4,5 KW each

    (This machine is for training purposes only.)

    Top

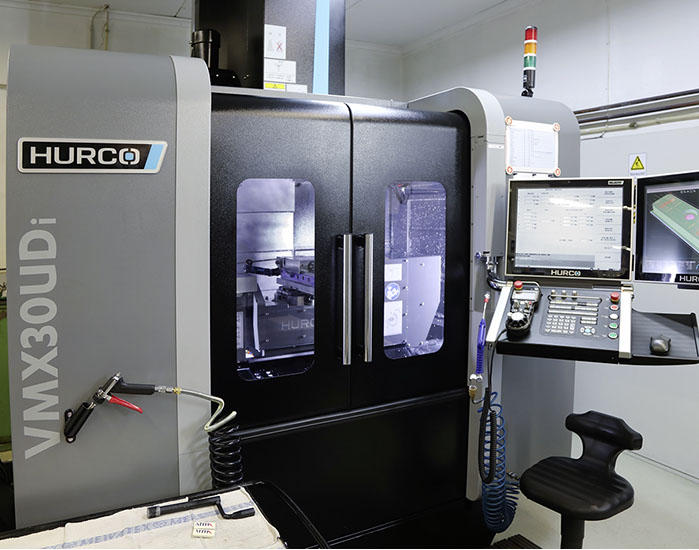

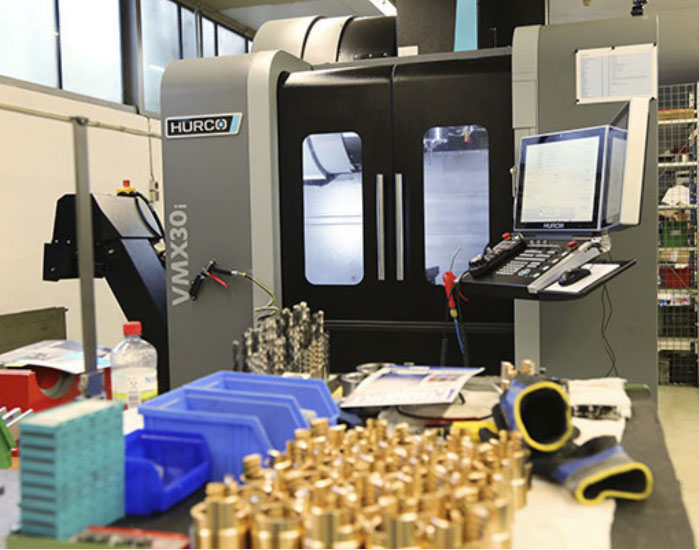

    Make 7: Hurco

    Type: 5-axis machining center Hurco VMX30i

    Table
    Working surface: 1,020 x 510 mm
    T-Grooves (DIN 650): 5 x 18 x 100 mm
    max. table load: 1,350 kg

    Traverse
    X-axis: 760 mm
    Y-axis: 510 mm
    Z-axis: 610 mm

    Spindle motor
    Power: 13.5 kW
    Torque: 214 Nm

    Spindle
    Admission: SK-40
    Distance spindle nose - table: 150-760 mm
    Spindle speed max.: 12,000 r/min.

    Tool changer
    Courts: 24/40
    max. tool diameter: 80 mm
    max. tool length: 300 mm
    max. tool mass: 7 kg

    Further data
    Rapid traverse for X/Y/Z axis: 35/35/30 m/min.
    Machine weight: 4,800/5,200 kg

  •      LATHING

    When it comes to lathing, we rely on CNC and cycle-controlled machines (excluding our in-house training with conventional devices). Our partnerships with Weiler and Hurco enable us to guarantee high drive powers, flexible controls and short set-up times.

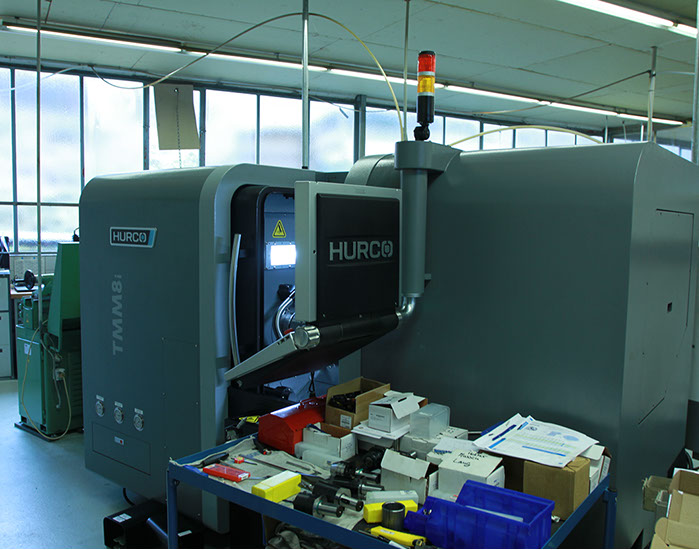

    1. CNC lathe Hurco

    Make: Hurco TMM8i

    Year of construction: 2018

    Turning∅: 250 mm

    Turning length: 450 mm tailstock, Hurco WinMax-control

    Spindle drilling: 54 mm

    Chuck-∅: 180 mm

    Drive: 26 KW

    Machine is equipped with driven tools for axial and radial machining

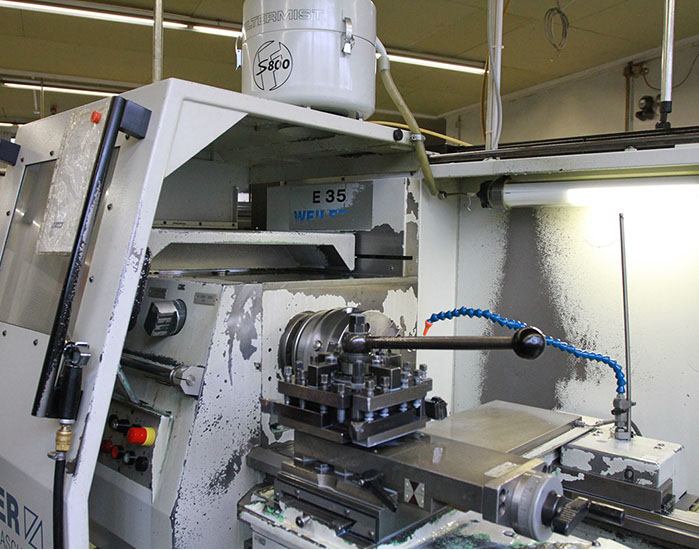

    2. CNC cycle machine Weiler

    Make: Weiler Type: E 35

    Year of construction: 2000

    Turning∅: 410 mm

    Turning length: 950 mm tailstock, Siemens Sinumerik 840

    Spindle drilling: 54 mm

    Chuck-∅: 250 mm

    Drive: 11 KW

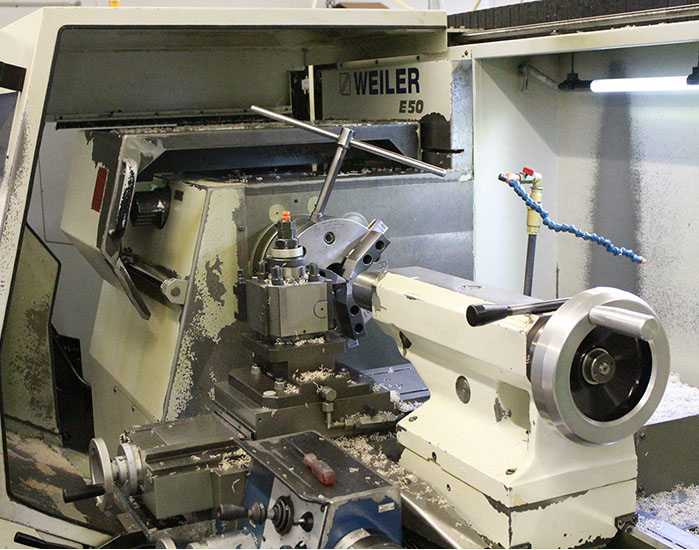

    3. CNC cycle machine Weiler

    Make: Weiler Type: E 50

    Year of construction: 2007

    Turning∅: 570 mm

    Turning length: 1000 mm Tailstock, Siemens Sinumerik 840

    Spindle drilling: 83 mm

    Chuck-∅: 250 mm

    Drive: 20 KW

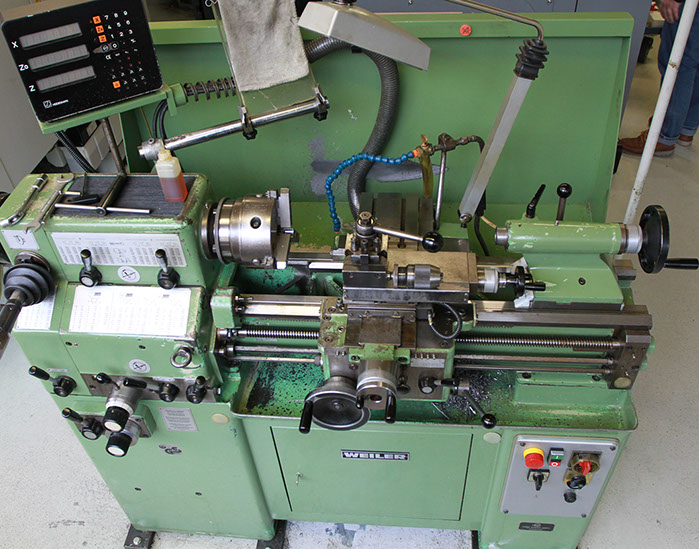

    4. Longitudinal+pull lathe Weiler

    Make: Weiler

    Type: Matador

    Year of construction: 1989

    Turning∅: 290 mm

    Turning length: 500 mm Digital display

    Spindle drilling: 36 mm

    Drive: 3 KW

    5. Longitudinal+pull

    Make: VDF

    Type: E 3

    Year of construction: 1961

    Turning∅: 480 mm

    Turning length: 800mm digital display

    Spindle drilling: 62 mm drive: 7,5 KW

    (This machine is for training purposes only.)



    Top

  •      GRINDING

    Our grinding machines offer you flexibility for the machining of individual parts or small batches: We cover everything from surface grinding through external cylindrical grinding to internal cylindrical grinding. Thanks to partnerships with renowned specialist firms, we can also handle the complete processing of special grinding orders for you on request.

    1. External cylindrical grinding machine

    Make: Fortuna

    Type: ES 1500

    Outside-∅ up to 320 mm

    Spindle height: 175 mm Spindle width: 1500 mm Measuring control

    2. Surface grinding machine

    Make: Jacobsen

    Type: S J 24

    X = 650 mm Y = 350 mm Z = 400 mm

    Magnetic plate 250x400 mm

    Angular magnetic table 150x400 mm

    Top

    3. Internal cylindrical grinding machine

    Make: WMW

    Type: SI 125

    Year of construction: 1968

    Grinding∅: 25 - 125 mm

    Grinding length: 150 mm

  •      WORK PREPARATION

    Regarding work preparation we use a CAD-CAM system with efficient post processors on all controlled machines. Using Edgecam to program directly, we are able to convert drawing data formats like DXF, DWG, Step and many more into optimal toolpaths.

    MEASURING

    Manufacturing according to very strict quality standards, based on the QSV 1002/98 of Hauni-Maschinenbau AG and ISO 9001, our measuring equipment is continuously tested, calibrated and renewed. For more complex and 3D measurements we work with competent partners. In addition to precise inspection of the dimensions and appearance of all components, we also produce an in-house measurement report including the required initial sample test reports for each manufactured position at an extra charge.

    If however an error should occur despite these high standards, we provide you with a quick and unbureaucratic replacement. Why? Because our success is measured by your satisfaction - since 1952.

    Top

  •      LABELING

    Need a component number or customer logo? Our powerful laser marking device Schilling ML6 with CAD connection ensures the final note on flat and round surfaces thanks to its C-axis.
